PCB019 1 Unit 3V-24V DC Individual Toggle Switch Power Distribution Module 8 Channel

Features:

• Perfect for small models and really tight places!.

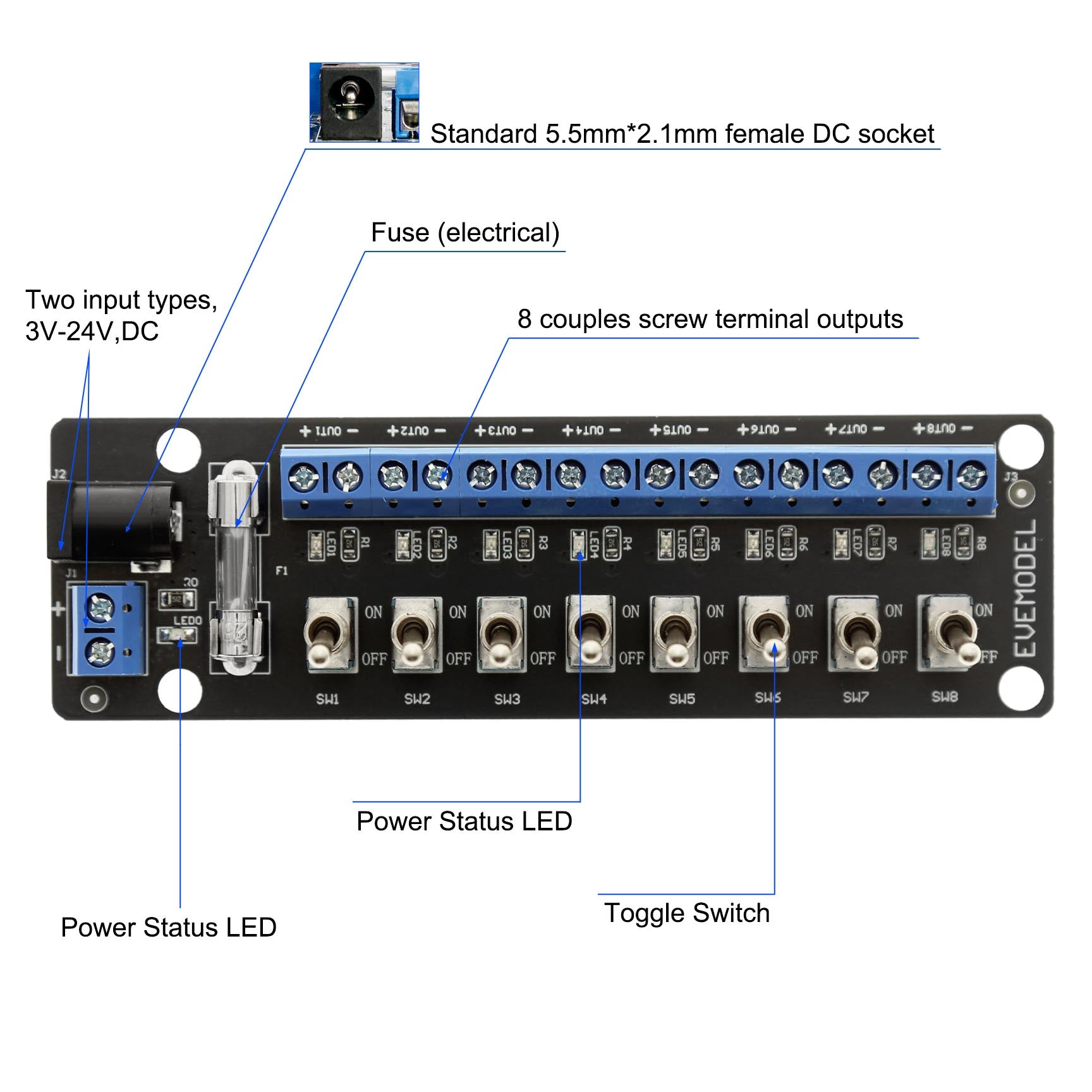

• 8 Channel lighting connector. Includes 8A fuse and LED power indicator light.

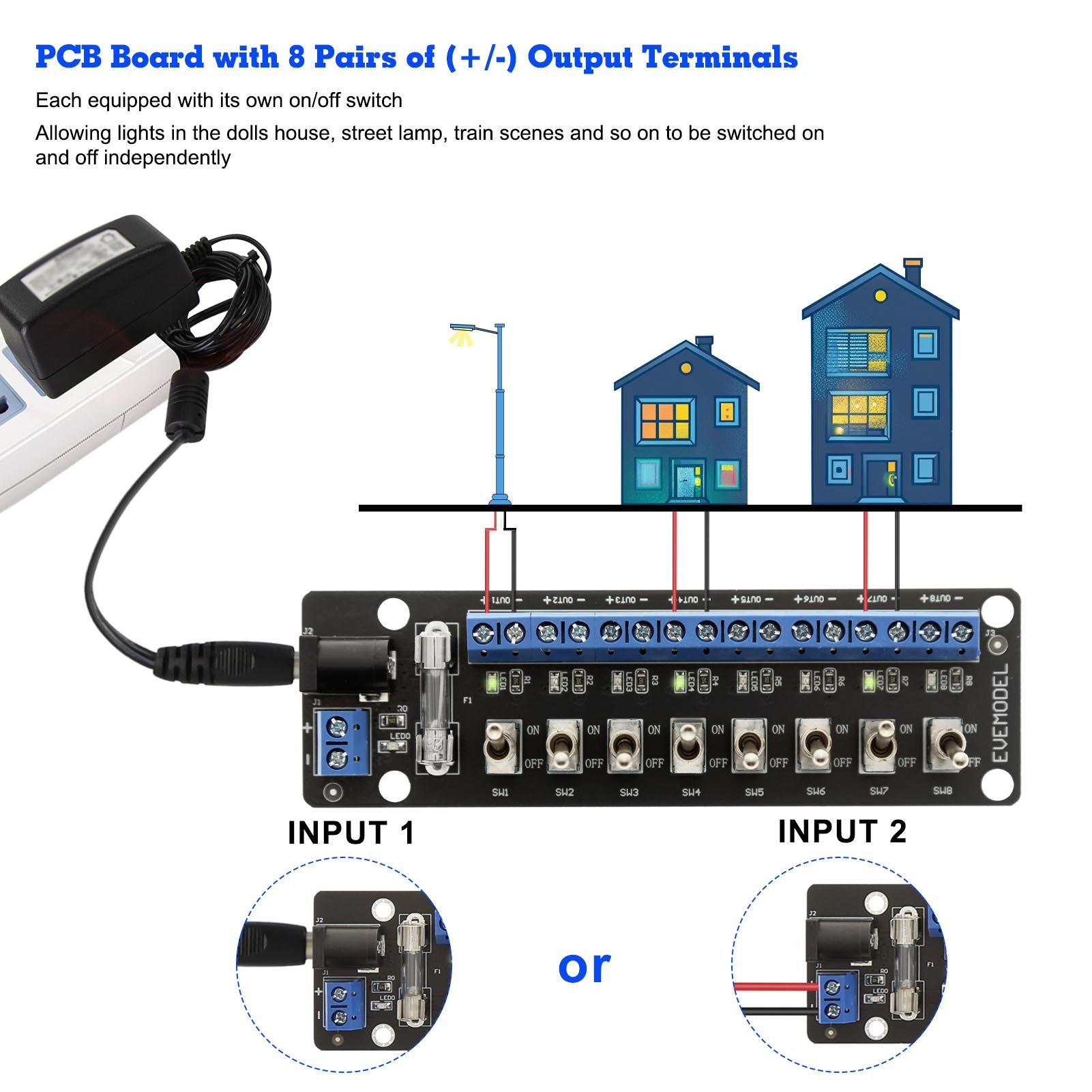

• There are 8 pairs of  (+/-) output terminals, each controlled by its own on/off switch allowing lights to be on and off independently.
• This power distribution module has a 2.1mm connector socket which is directly compatible with Digital Power Supplies (PS100, PS200, PS300 & PS500).

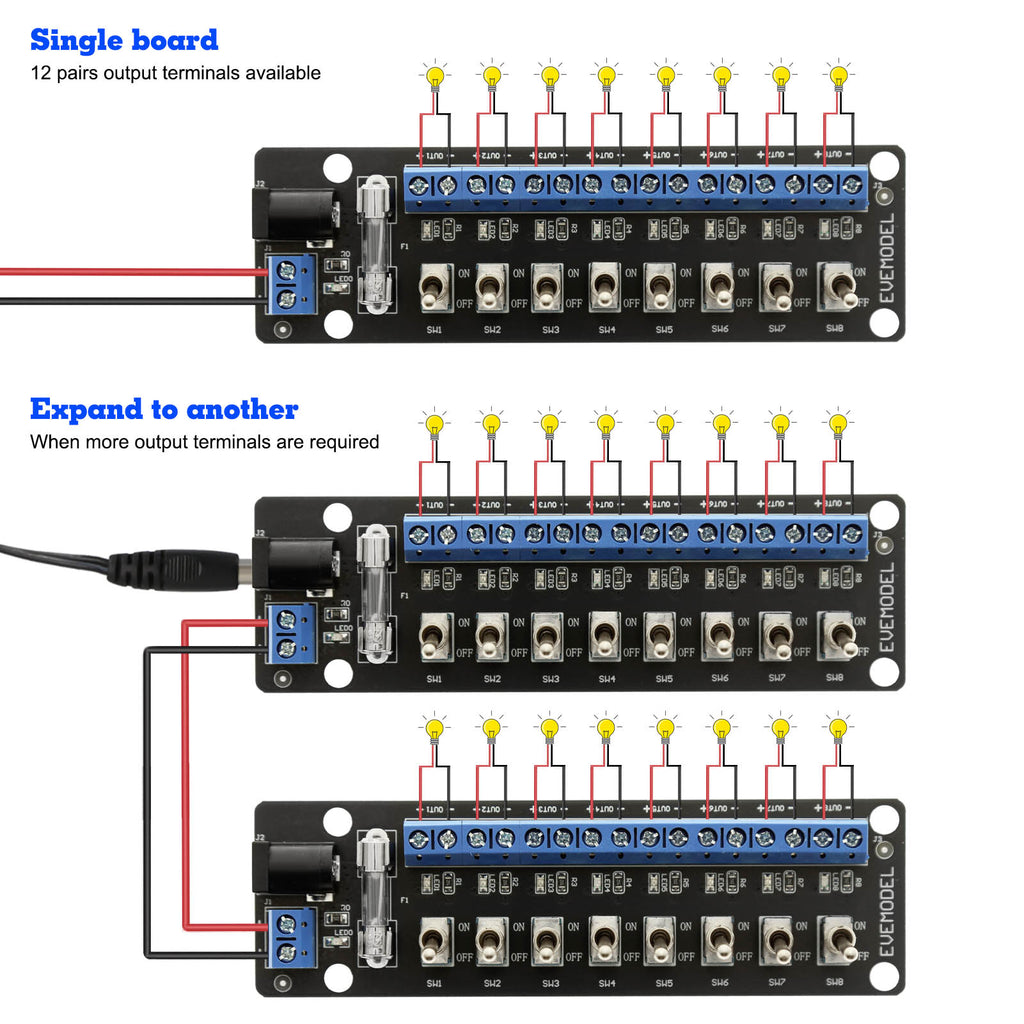

• Alternatively the two screw terminal input next to the 2.1mm socket can be used to connect other types of power supply.These screw terminals can also be used to link additional socket strips in large systems where more output channels are required.

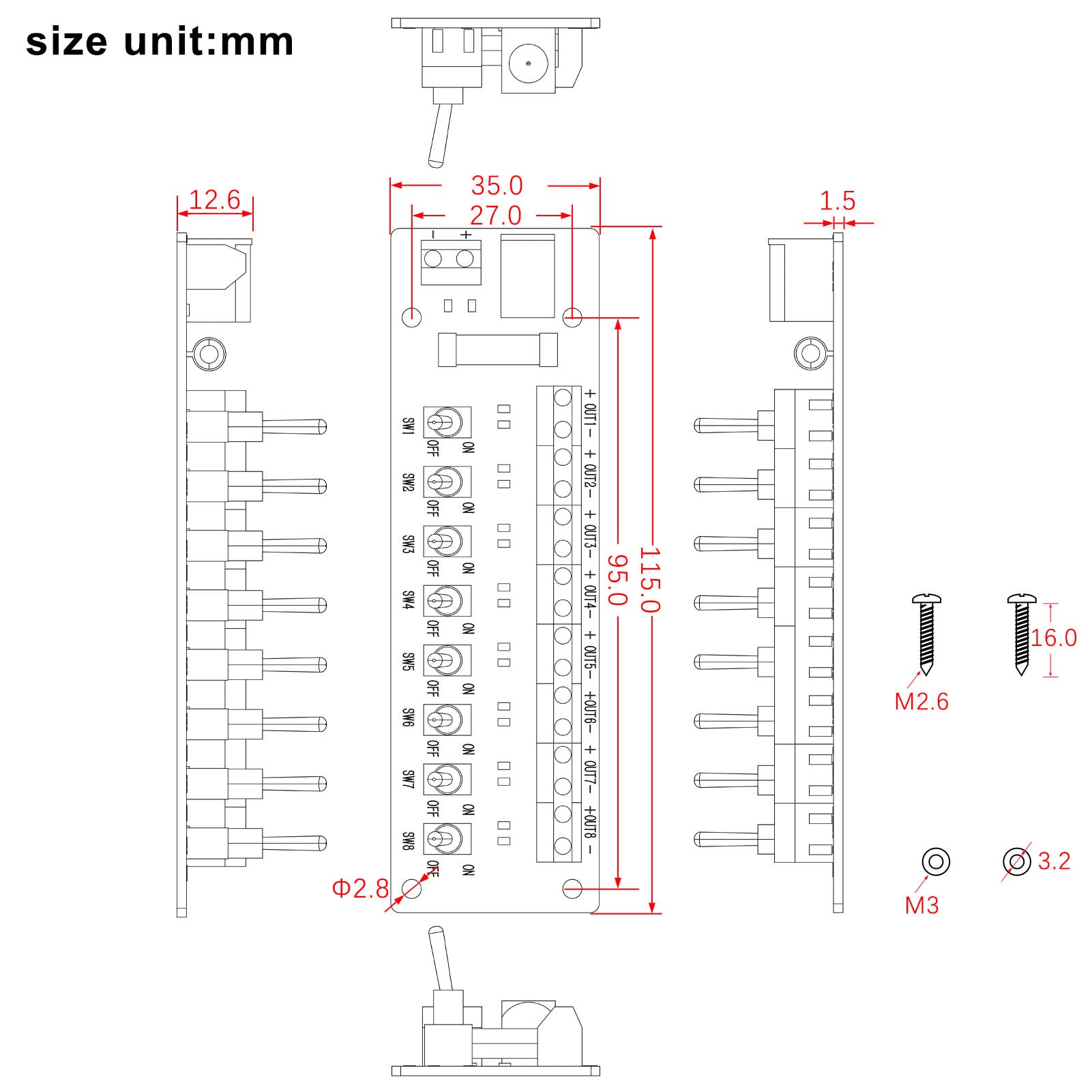

• Dimensions:as the picture shows.
• Input Voltage: 3V-24V,DC voltage.
• Maximum power input: 24V DC 8.0A.
• Maximum power output:  8.0A total between all channels. Max. 1.0A per channel.
• Fuse included: 8 Amp (20mm x 5mm).
• Power input: standard 5.5mm*2.1mm female DC socket.(You need to prepare it by yourself.It is not included)

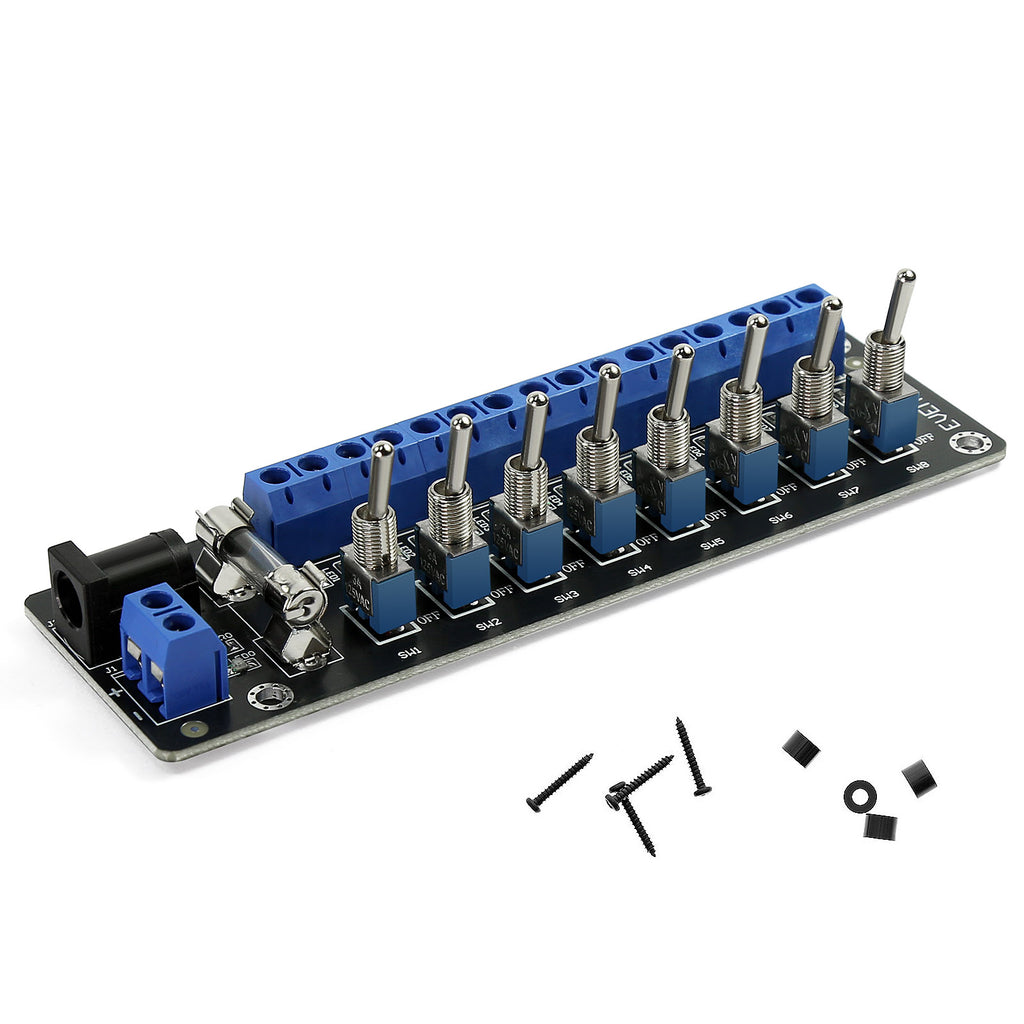

• One unit power distribuiton board with 4pcs screws and 4pcs spacers.
