Description
Features:
- Brand new. Perfect for small models and really tight places!
- This distribution is the ideal solution for the model train to supply all lighting.
- Operation with DC, AC or digital current.
- 3 input terminals.
- 2*8 output terminals.
- 4 holes for mounting with wide spacers.
Specification:

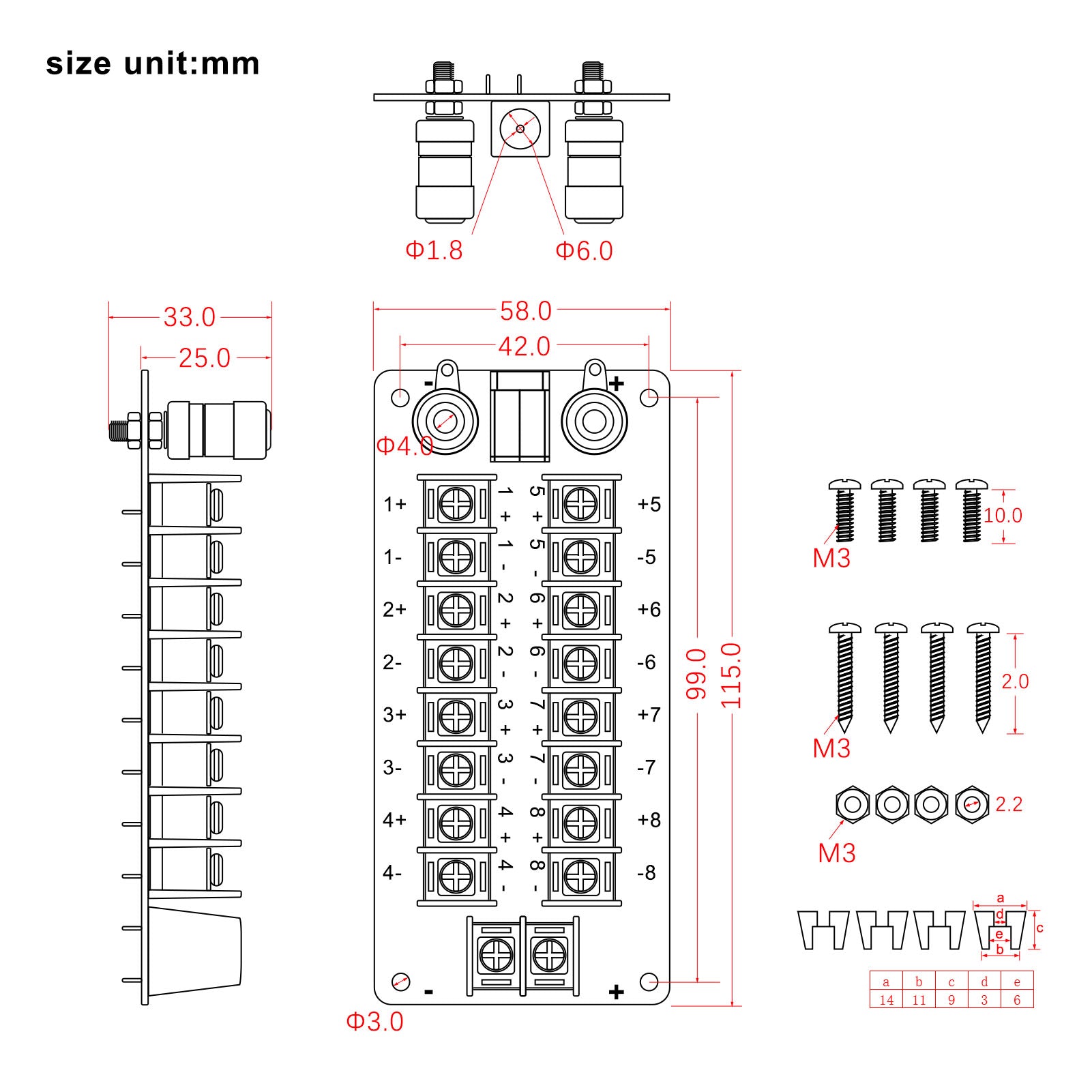

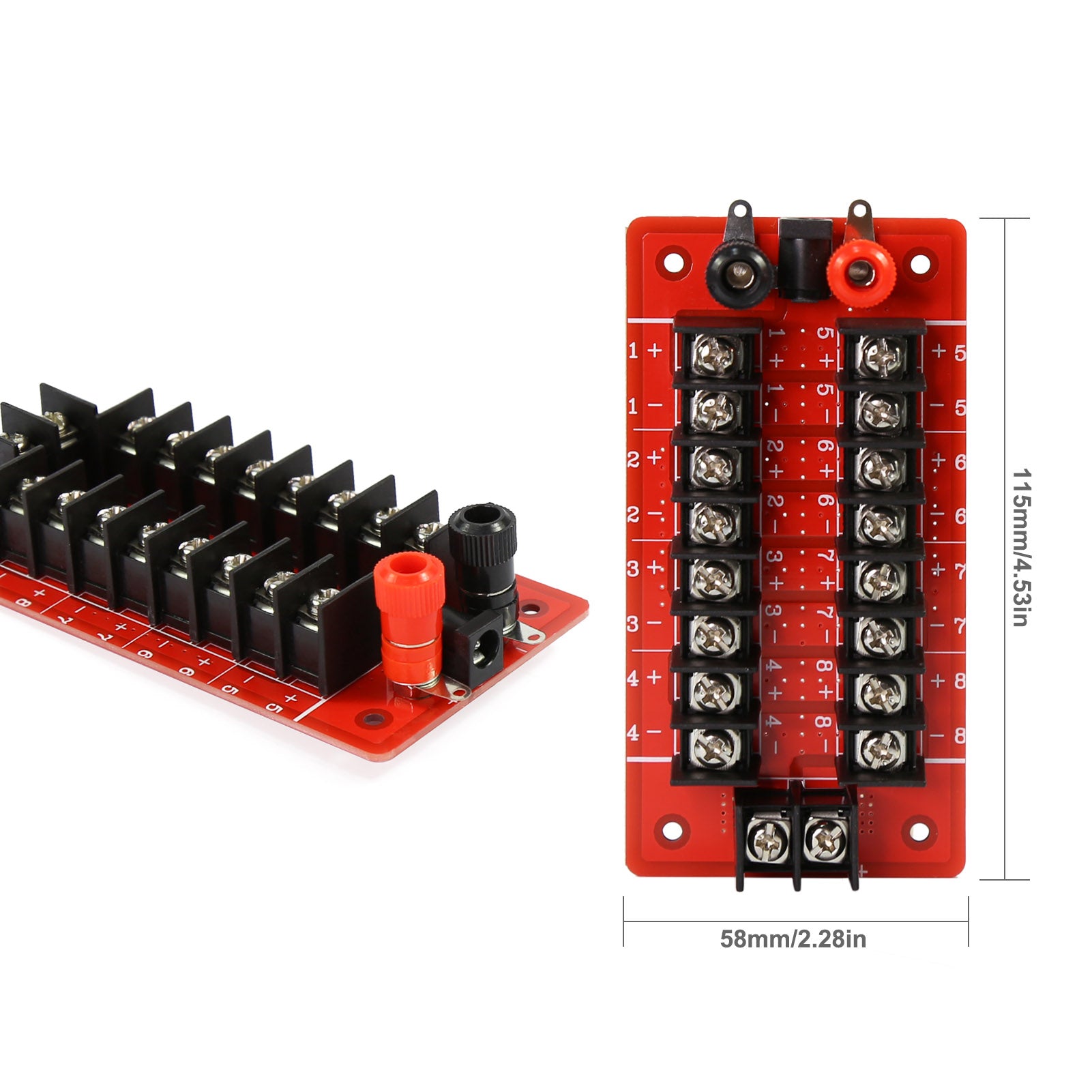

- Size: as the picture shows.
- Two input types, if using DC socket input, the maximum voltage is 30V. The maximum current is 2A.
- Maximum voltage: 300V AC and DC voltage.
- Total supply maximum current: 20A (2-pole Power supply to terminal).
- Wire Gauge: 12-22 AWG.
Package included:
- 1x Power distribution board.
- 1x Red banana plug.
- 1x Black banana plug.
- 1x DC plug.
- 9x Red spade terminal connectors (support wire AWG22-16).
- 9x Black spade terminal connectors (support wire AWG22-16).
- 4x Rubber Spacers.
- 4x M3x20 Metal Cross round-head self-tapping screws.
- 4x M3x10 Metal cross round-head bolts.
- 4x M3 Hex nuts (to use with round-head bolts).
