PCB001 1 Set Power Distribution Board With Status LEDs

Features:

• 100% Brand new and high quality.

• This distribution is the ideal solution for the model train to supply all lighting.

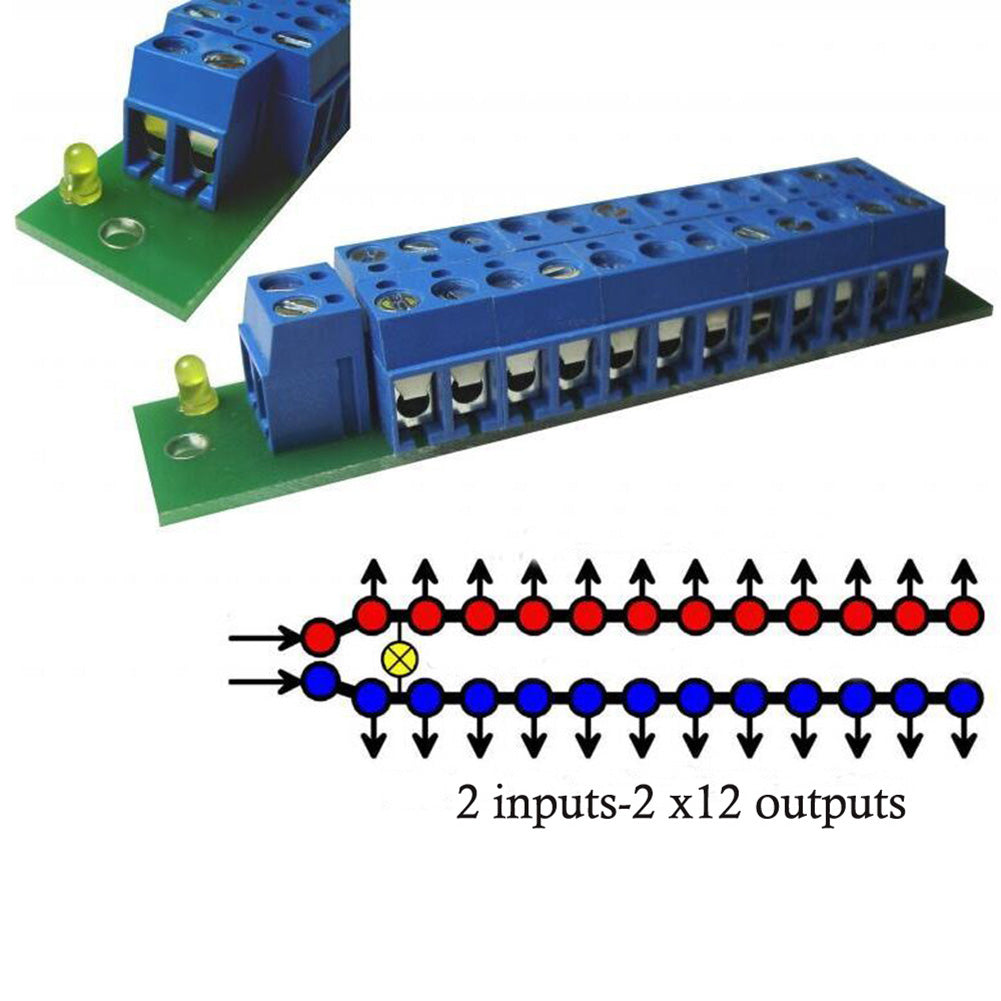

• There are 2 connectors for the input of voltage and 2 x 12 connectors for the outputs on the distributor.

• Status LED lights from 3 - 5V with DC and AC voltage.

• 2 holes for mounting with wide spacers.

• The terminal board is ROHS compliant.

Specification:

• Dimensions: Approx. 90mm(L) x 18mm(W) x 17mm(H)

• Maximum voltage: 30V AC / DC AC and DC voltage.

• Total supply  maximum current: 8A (supply at terminal 2-pole).

• Current carrying capacity per connection: 6A(max).

Package included:

• 1 Set Power Distribution Board.
